OUR PRODUCTS

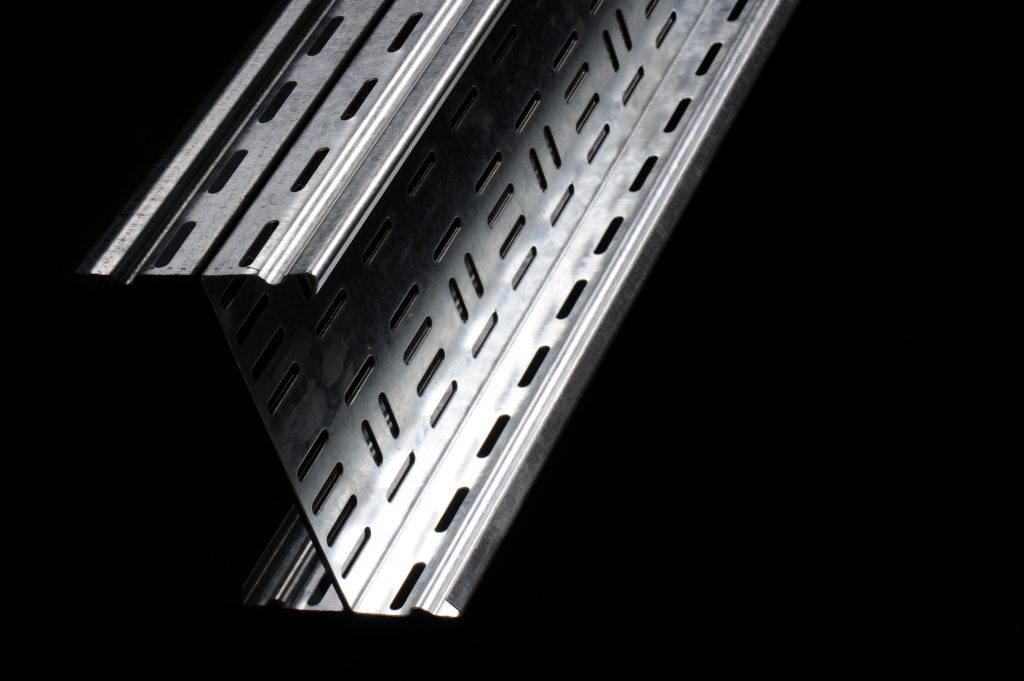

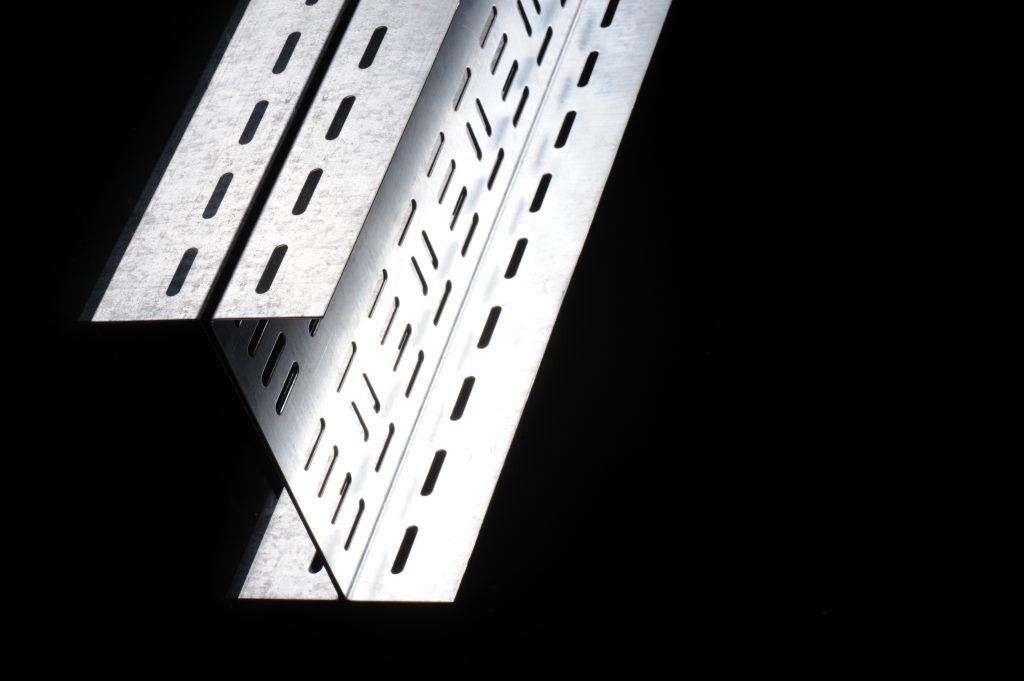

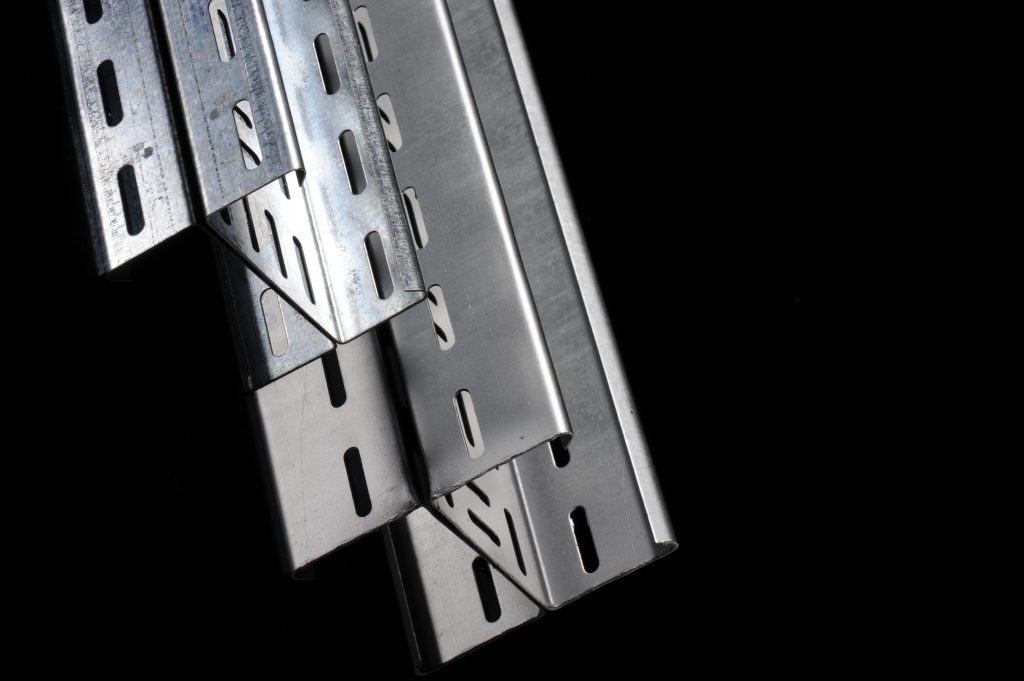

CABLE TRAYS

Specification	Height [mm]	Widht [mm]	Thickness [mm]	Length [mm]
Standard Perforated Cable Tray	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0	3000
Heavy Duty Perforated Cable Tray Inside / Outside Flange	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0	3000
Cover Fit Into Perforated Cable Tray	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0	3000
Non-Perforated Cable Tray	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0	3000
Cable Tray Cover	13,25	50 - 1000	1.0-1.2-1.5-2.0	3000

CABLE TRAY ACCESSORIES

Type	Height [mm]	Widht [mm]	Thickness [mm]
Horizontal Bend - 90deg	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0
Horizontal T-Bend	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0
Horizontal Bend - 45deg	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0
Crossover	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0
Reducer	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0
Internal/External Riser - 90deg	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0
Internal/External Riser - 45deg	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0
Vertical T-Bend	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0
Coupler	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0
Separator	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0
End Cap	50,75,100,125,150	50 - 1000	1.0-1.2-1.5-2.0
Cover Clips	50,75,100,125,150		1.0-1.2-1.5-2.0

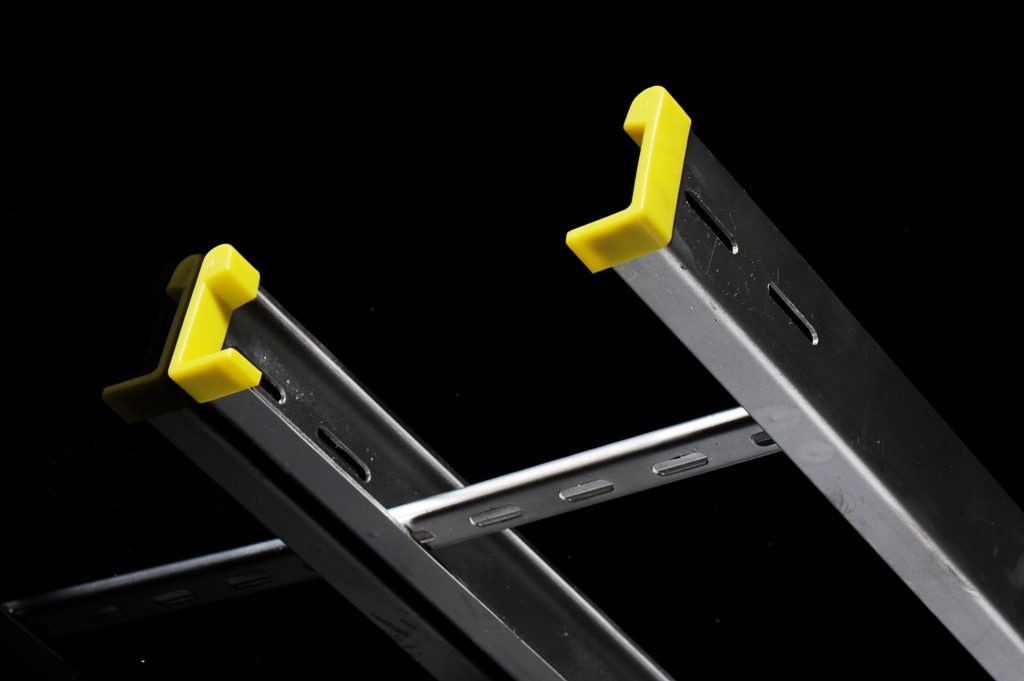

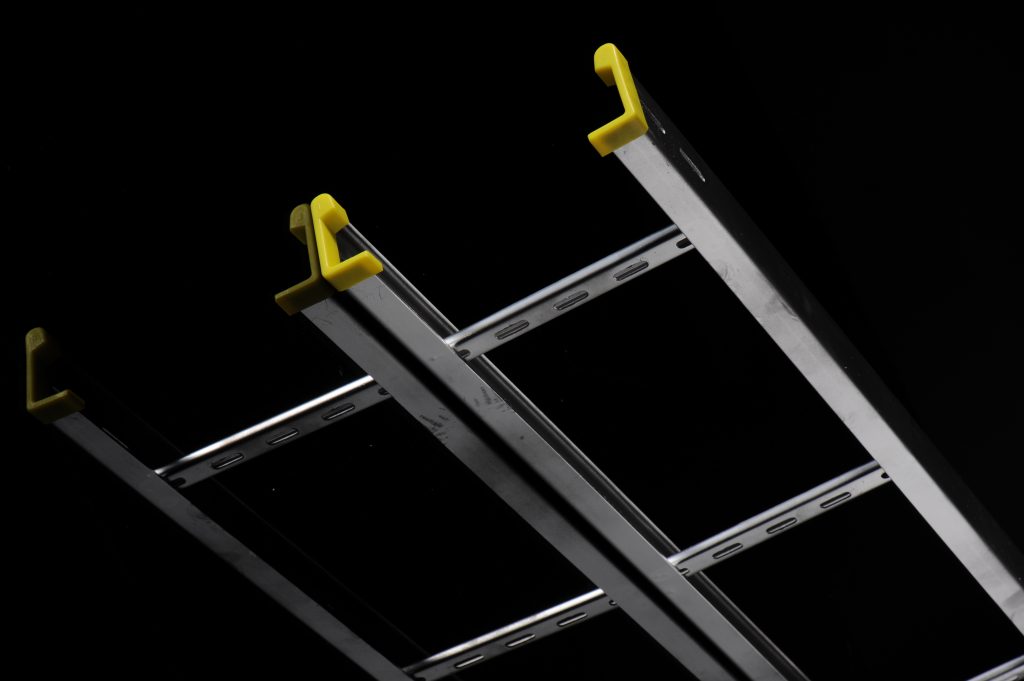

CABLE LADDERS

Specification	Height [mm]	Widht [mm]	Thickness [mm]	Length [mm]
Standard Inside Flange Cable Ladder	50,75,100,125,150	50 - 1200	1.5 - 2.0 - 2.5	3000
C Type Inside / Outside Flange Cable Ladder	50,75,100,125,150	50 - 1200	1.5 - 2.0 - 2.5	3000
Cable Ladder C Profile Rungs & Return Side Walls	50,75,100,125,150	50 - 1200	1.5 - 2.0 - 2.5	3000

CABLE LADDER ACCESSORIES

Type	Height [mm]	Widht [mm]	Thickness [mm]
Horizontal Bend - 90deg	50,75,100,125,150	50 - 1000	1.5 - 2.0 - 2.5
Horizontal T-Bend	50,75,100,125,150	50 - 1000	1.5 - 2.0 - 2.5
Horizontal Bend - 45deg	50,75,100,125,150	50 - 1000	1.5 - 2.0 - 2.5
Crossover	50,75,100,125,150	50 - 1000	1.5 - 2.0 - 2.5
Reducer	50,75,100,125,150	50 - 1000	1.5 - 2.0 - 2.5
Internal/External Riser - 90deg	50,75,100,125,150	50 - 1000	1.5 - 2.0 - 2.5
Internal/External Riser - 45deg	50,75,100,125,150	50 - 1000	1.5 - 2.0 - 2.5
Vertical T-Bend	50,75,100,125,150	50 - 1000	1.5 - 2.0 - 2.5
Coupler	50,75,100,125,150	50 - 1000	1.5 - 2.0 - 2.5
Separator	50,75,100,125,150	50 - 1000	1.5 - 2.0 - 2.5
End Cap	50,75,100,125,150	50 - 1000	1.5 - 2.0 - 2.5
Cover Clips	50,75,100,125,150		1.5 - 2.0 - 2.5

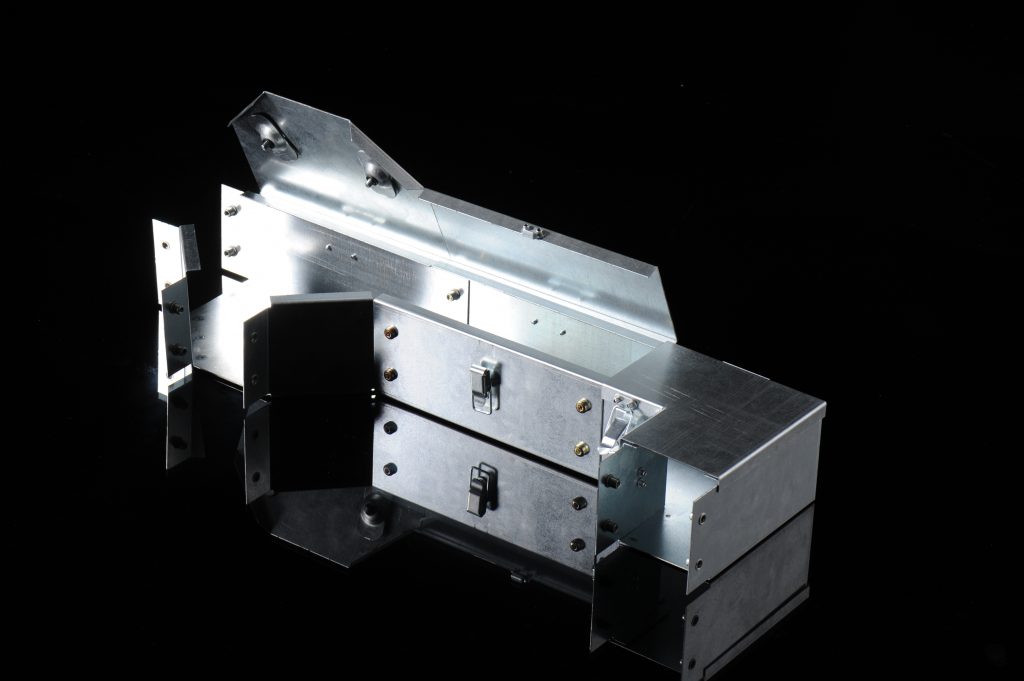

CABLE TRUNKING

Type	Height [mm]	Widht [mm]	Thickness [mm]
Single Compartment Cable Trunking	50-75-100-150-200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0

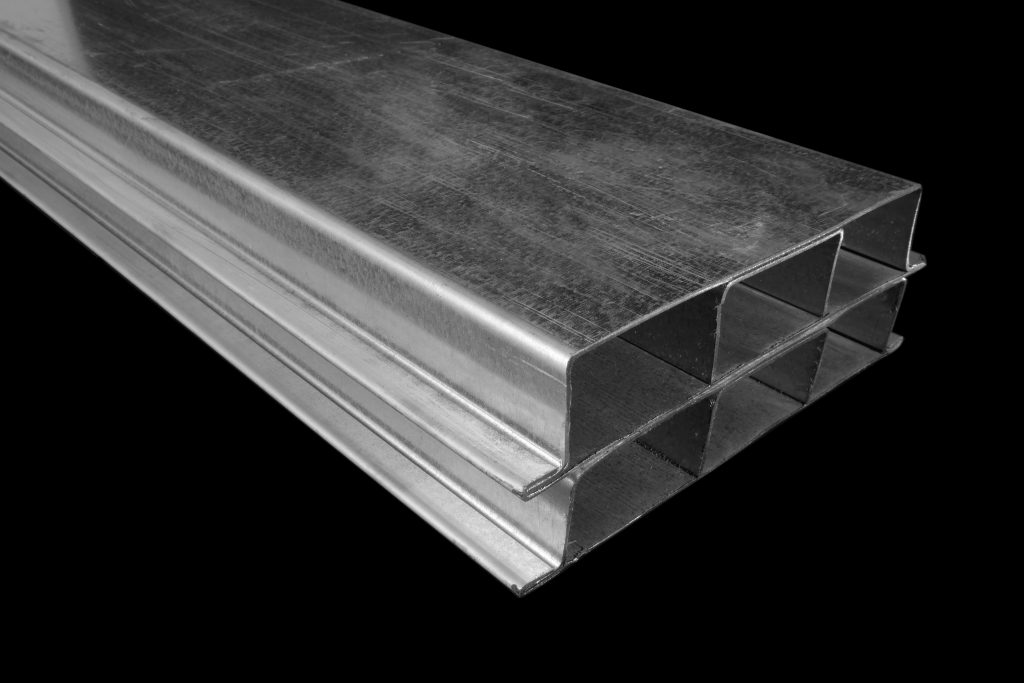

Compartment Underfloor Trunking	38-50-100	100-150-200-300	1.0 - 1.2 - 1.5 -1.6-2.0
Compartment Underfloor Trunking	38-50-100	100-150-225-300	1.0 - 1.2 - 1.5 -1.6-2.0

CABLE TRUNKING ACCESSORIES

Type	Height [mm]	Widht [mm]	Thickness [mm]
Horizontal Bend - 90deg	50,75,100 ,150 , 200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0
Horizontal T-Bend	50,75,100 ,150 , 200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0
Horizontal Bend - 45deg	50,75,100 ,150 , 200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0
Crossover	50,75,100 ,150 , 200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0
Reducer	50,75,100 ,150 , 200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0
Internal/External Riser - 90deg	50,75,100 ,150 , 200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0
Internal/External Riser - 45deg	50,75,100 ,150 , 200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0
Vertical T-Bend	50,75,100 ,150 , 200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0
Coupler	50,75,100 ,150 , 200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0
Separator	50,75,100 ,150 , 200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0
End Cap	50,75,100 ,150 , 200	50-75-100-150-200-300-400	1.0 - 1.2 - 1.5 -1.6-2.0
Cover Clips	50,75,100 ,150 , 200		1.0 - 1.2 - 1.5 -1.6-2.0

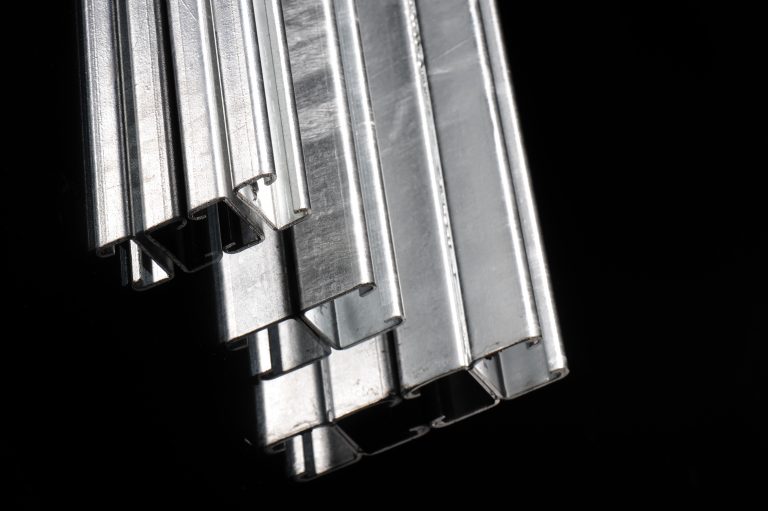

UNISTRUT CHANNELS

Type	Height [mm]	Widht [mm]	Thickness [mm]
Plain Single Channel	21	41	1.5-2.0-2.5
Plain Single Channel	41	41	1.5-2.0-2.5
Slotted Single Channel	21	41	1.5-2.0-2.5
Slotted Single Channel	41	41	1.5-2.0-2.5
Plain Double Channel	82	41	1.5-2.0-2.5
Slotted Double Channel	82	41	1.5-2.0-2.5

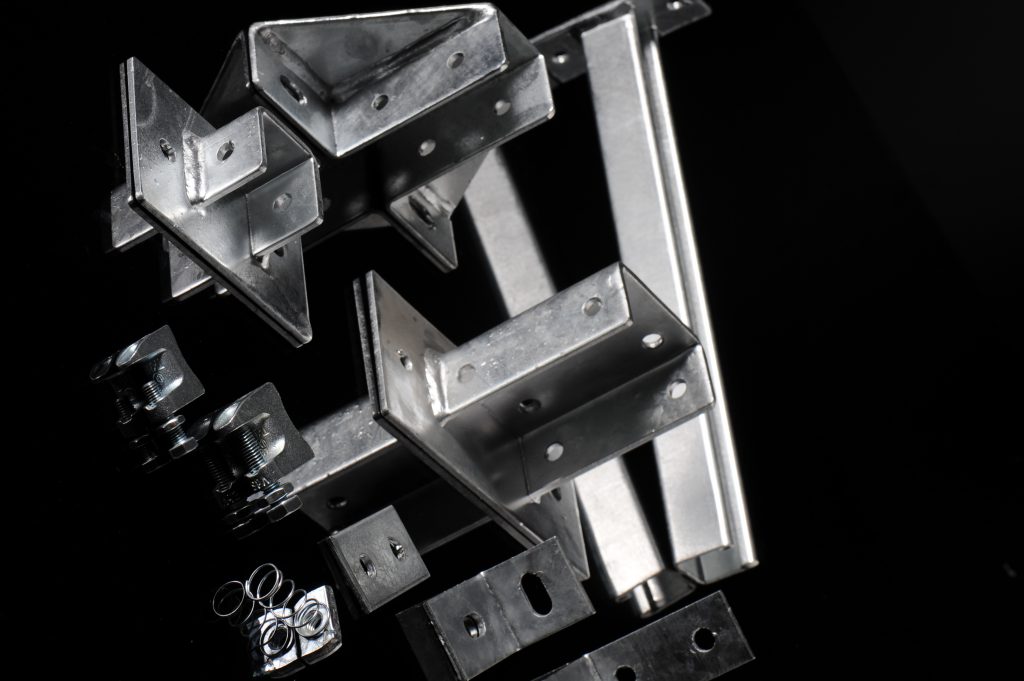

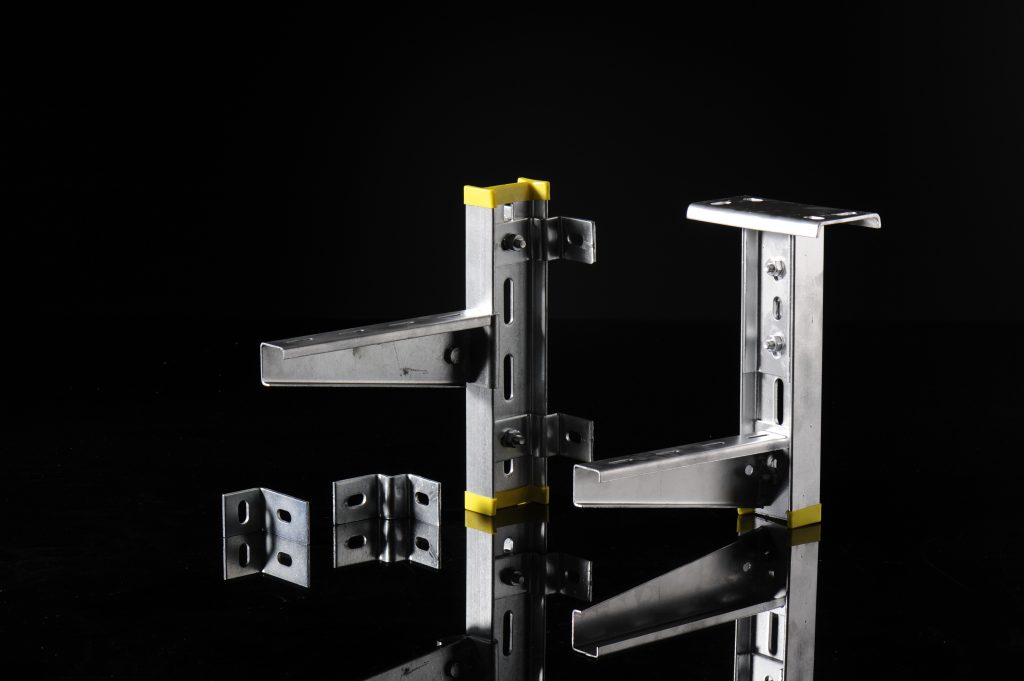

SUPPORT SYSTEMS

Type	Height [mm]	Thickness [mm]
L - Support System	500 - 3000	1.5
U - Support System	500 - 3000	1.5
Wall Support System	50 -900	2.0
I80 Support System	300 - 6000	4
Cantilever Bracket	50-900	2
Cantilever Arm	50 - 900	2
Stand Off Bracket	50 - 900	2.0
Trapeze Hanger	50 - 900	2
Hold Down Bracket	50-75-100	2
Heavy Duty Cantilever	100 - 900	2.5
Flat Fittings / Mounting Fittings / Angle Fittings		6
Channel Base Plate / Channel Clamp with U Bolt		6

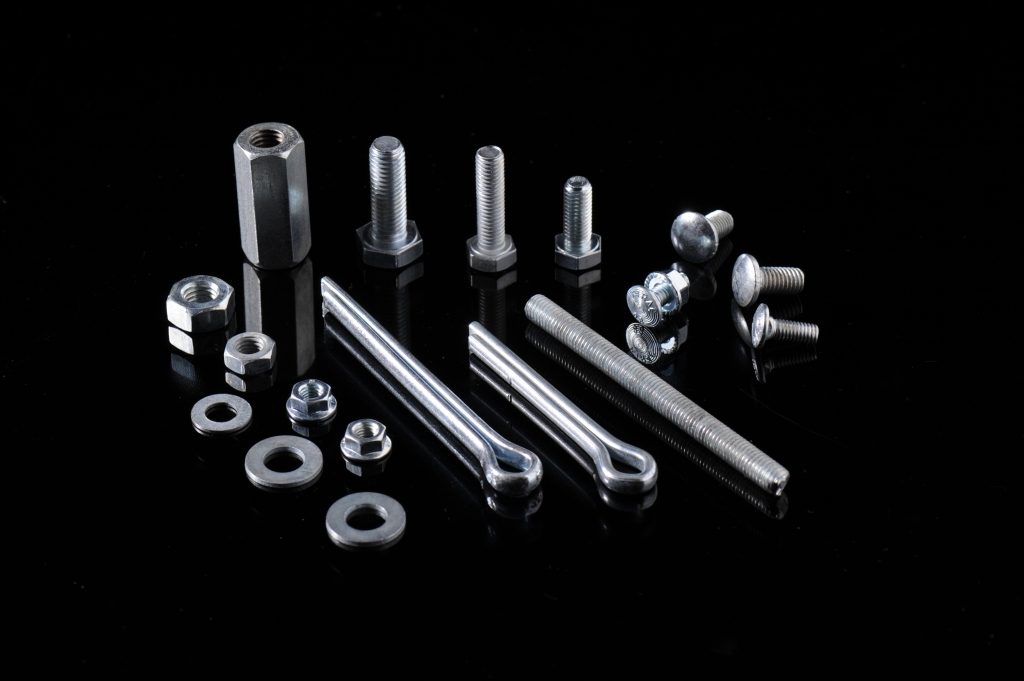

FASTENERS

Bolts	Nuts	Washers
Round Head Bolt DIN603 - M6x12	Hexagonal Nut DIN943 - M6	Washer M6
Round Head Bolt DIN603 - M6x15	Hexagonal Nut DIN943 - M8	Washer M8
Round Head Bolt DIN603 - M6x20	Hexagonal Nut DIN943 - M10	Washer M10
Round Head Bolt DIN603 - M8x12	Hexagonal Nut DIN943 - M12	Washer M12
Round Head Bolt DIN603 - M8x15	Spring Nut M8
Hexagonal Head Bolt DIN933 - M8x20	Spring Nut M10
Hexagonal Head Bolt DIN933 - M8x30	M8 Threaded Rod Coupler
Hexagonal Head Bolt DIN933 - M10x30	M10 Threaded Rod Coupler
	M6 Flanged Nut

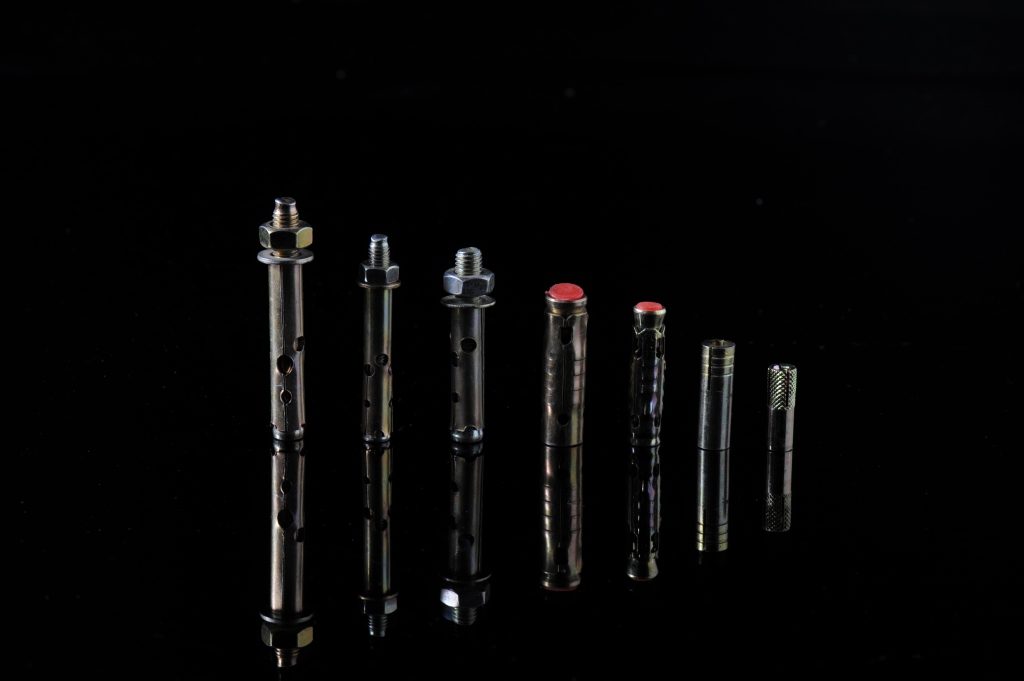

Threaded Rods	Anchors	Beam Clamps
Threaded Rod DIN975 - M8x1000	Sleeve Anchor M8x55	Beam Clamp M8
Threaded Rod DIN975 - M10x1000	Sleeve Anchor M8x75	Beam Clamp M10
Threaded Rod DIN975 - M12x1000	Sleeve Anchor M10x70	Beam Clamp M12
Threaded Rod DIN975 - M8x1500	Sleeve Anchor M10x85
Threaded Rod DIN975 - M10x1500	Sleeve Anchor M12x90
Threaded Rod DIN975 - M12x1500	Drop in Anchor M8
Threaded Rod DIN975 - M8x2000	Drop In Anchor M10
Threaded Rod DIN975 - M10x2000	Drop In Anchor M12
Threaded Rod DIN975 - M12x2000	S Type Drop In Anchor M8
Threaded Rod DIN975 - M8x3000	S Type Drop In Anchor M10
Threaded Rod DIN975 - M10x3000	S Type Drop In Anchor M12
Threaded Rod DIN975 - M12x3000
